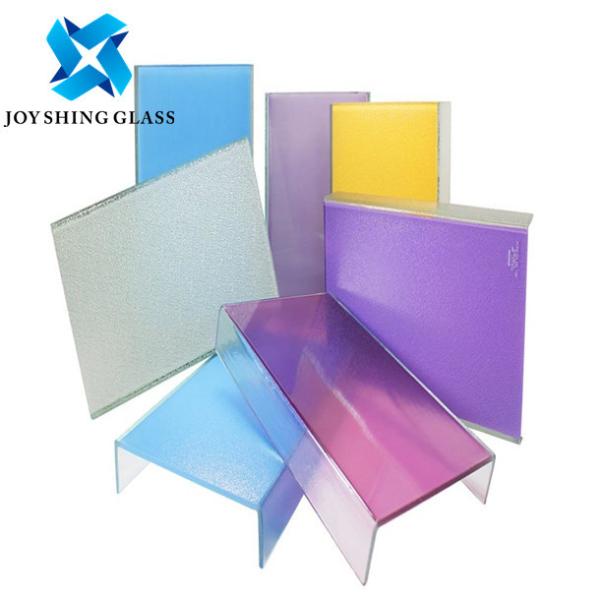

Custom Special U Shape Glass Curtain Wall Facade Architectural
Glass
Specification
| Glass Type | U Shaped Glass |
| Model | JY-U101 |
| Material | Float Glass |
| Glass Thickness | 6mm, 7mm, 8mm, etc. |
| Glass Color | Orange, yellow, gold, sky blue, blue, gemstone blue, green and
wisteria. |
| Size | Customized |
| Max size | 7500mm L*500mm H |
| Edge Processing | Flat Edge, Grind Edge, Polished Edge, Bevelled edge, Flat Polished
Edge, Round Edge |
| Lead Time | Generally 2 weeks, depend on order quantity. |
| Terms of Payment | 30% down payment before production, 70% balance paid before
loading. |
| U-profile/Channel Glass Series | K40Series | K60Series |
| U-profile/Channel Glass Series | P23/41/6 | P26/41/6 | P33/41/6 | P50/41/6 | P23/60/7 | P26/60/7 | P33/60/7 |
| Face Width (w) mm | 232mm | 262mm | 331mm | 498mm | 232mm | 262mm | 331mm |
| Face Width (w) inches | 9-1/8" | 10-5/16" | 13-1/32" | 19-5/8" | 9-1/8" | 10-5/16" | 13-1/32" |
| Flange height (h) mm | 41mm | 41mm | 41mm | 41mm | 60mm | 60mm | 60mm |
| Flange height (h) inches | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 2-3/8" | 2-3/8" | 2-3/8" |
| Glass thickness(t) mm | 6mm | 6mm | 6mm | 6mm | 7mm | 7mm | 7mm |
| Glass thickness(t) inches | .24" | .24" | .24" | .24" | .28" | .28" | .28" |
| Maximum Length(L) mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm |
| Maximum Length(L) inches | 276" | 276" | 276" | 276" | 276" | 276" | 276" |
| Weight (single layer) KG/m2 | 19.43 | 18.94 | 18.16 | 16.94 | 25.43 | 24.5 | 23.43 |
| Weight (single layer) lbs/sq ft. | 3.98 | 3.88 | 3.72 | 3.47 | 5.21 | 5.02 | 4.8 |
| Glass Textures | Rough Cast | Clear | Ice | Piccolo | Low iron | etc. | |
| Note: Some sizes and textures may be limited production and subject
to longer lead times. For large projects, we will be pleased to
discuss customized textures and sizes. |
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in
producing, selling, service providing for all kinds of custom
building glass like acid etched glass, low-e glass, mirror glass,
tempered glass, laminated glass, insulated glass, AR coating glass,
fire-rated glass, U channel glass, PDLC smart glass, etc. Our
advantages are as below:
1. More than 10 years experiences on glass manufacturing and
exporting
2. Advanced glass machines and technology
3. Excellent quality with very competitive price
4. Export to more 75 countries over 500 customers in the world
5. Customize all kinds of glass products for each client
6. Safety package and fast delivery
7. Have technical workers and professional sales team offer
personalized and dedicated services
Product photo
FAQ
Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want
to receive the best price, the bigger quantity, the better price.
Q: Can I have a small sample to verify the quality?
A: Sure, we welcome samples to be tested and checked for quality.
Q: Can I visit your factory?
A: Yes, we welcome all of the customers to visit our factory when
you have real requirements, we will take you to each of our
production lines, and discuss orders in our office.
Q: Do you offer a guarantee for the products?
A: Yes, generally, we offer 10 years warranty for processing glass
based on your normal uses, we advise you use it in the right way
can keep your product's service life a long time .
Q: How do you control the quality of your products?
A: We have standard management in the factory based on the ISO
system, and train our staff regularly, our production department
will choose high-quality materials for glass strictly, for finished
excellent products. And we have QC for each process, once find any
problem, we will replace the glass, to make sure every piece of
glass go to the customer's warehouse is in good condition.
