20mm Fireproof Tempered Glass Heat Resistance Toughened Fire Rated
Glass
Fireproof tempered glass is a special glass that has been specially
treated to meet the requirements of the corresponding fire
resistance grade. Can withstand high temperatures and maintain its
structural integrity during a fire. Joy Shing Glass factory direct
sales, can produce thickness, size, shape or further processing
into laminated safety fireproof glass, insulated glass, etc.
according to requirements.
Features of fireproof tempered glass
1. High strength and impact resistance: several times that of float
glass at the same thickness.
2. Strong fire resistance: Joy Shing fireproof tempered glass has
strong fire resistance, which can effectively prevent the spread of
flames and smoke.
3. High transparency: allows natural light to pass through and
provides clear visibility for easy observation.
4. Safety: When the glass is broken, it will be broken into small
obtuse particles to reduce the damage.
5. Fire-resistant glass has different fire-resistant grades, which
can be selected according to needs.
Specification
| Product Name | Fireproof Tempered Glass |
| Model | JY-FT101 |
| Brand | Joy Shing |
| Dimensions(mm) | 3300*2140mm,3300*2440mm,3660*2140mm,3660*2440mm,2440*1830mm, 2440*1650mm,2140*1650mm,2200*1650mm, other size upon request |
| Thickness(mm) | 20mm,can be produced upon request |
| Shape | Rectangular, round, square or custom shapes |
| Density(g/cm3)(at 25ºC) | 2.23±0.02 |
| Co-efficient of expansion(α)(20-300ºC) | 3.3±0.1*10-6 |
| Softening Point(ºC) | 820±10 |
| Identical temperature difference(K) | 100 >300(Strengthening type) |
| Thermal shock resistance(K) | ≥125 |
| Max working temperature(ºC) | ≥450 |
| Refractive(nd) | 1.47384 |
| Light transmission | 92%(thickness≤4mm) 91%(thickness≥5mm) |
| Processing | Pre-cut formats, edge processing, tempering |
Packaging Details | Use protective paper film and soft wood pad for separate glass
avoid breaking. Sea Worthy Strong Wooden Crates All glass are packed in strong wooden crates,nailed and strapped. |
Sample | Free samples available |
Warranty | 10 years |
Delivery | 15-20 working days |
Payment Terms | 30% deposit, and balance before shipment by T/T |

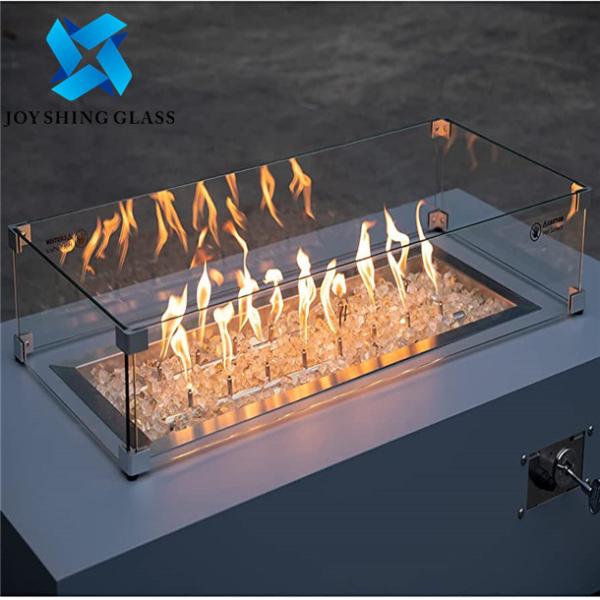

Product photo
Application
Joy Shing fireproof tempered glass integrates strength, durability,
transparency and excellent fire resistance. It is widely used in:
1. Commercial buildings such as hotels, shopping malls, and office
buildings
2. Residential doors and windows, partition walls, etc.
3. Hospitals, schools, airports and other public facilities
4. Industrial environments with high fire risks, such as factories
and warehouses, etc.
FAQ
Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want
to receive the best price, the bigger quantity, the better price.
Q: Can I have a small sample to verify the quality?
A: Sure, we welcome samples to be tested and checked for quality.
Q: Can I visit your factory?
A: Yes, we welcome all of the customers to visit our factory when
you have real requirements, we will take you to each of our
production lines, and discuss orders in our office.
Q: Do you offer a guarantee for the products?
A: Yes, generally, we offer 10 years warranty for processing glass
based on your normal uses, we advise you use it in the right way
can keep your product's service life a long time .
Q: How do you control the quality of your products?
A: We have standard management in the factory based on the ISO
system, and train our staff regularly, our production department
will choose high-quality materials for glass strictly, for finished
excellent products. And we have QC for each process, once find any
problem, we will replace the glass, to make sure every piece of
glass go to the customer's warehouse is in good condition.
